RF57減速機重量：RF57減速機重量20公斤，RF57減速機帶電機重量分別如下

RF57減速機帶0.12KW電機重量25.5公斤,RF57減速機帶0.18KW電機重量26公斤,RF57減速機帶0.25KW電機重量30公斤,RF57減速機帶0.37KW電機重量30.5公斤,RF57減速機帶0.55KW電機重量35公斤,RF57減速機帶0.75KW電機重量36公斤,RF57減速機帶1.1KW電機重量40公斤,RF57減速機帶1.5KW電機重量43公斤,RF57減速機帶2.2KW電機重量52公斤,RF57減速機帶3KW電機重量55公斤,RF57減速機帶4KW電機重量66公斤,RF57減速機帶5.5KW電機重量80公斤,RF57減速機帶7.5KW電機重量93公斤。

RF57減速機加油量：可加合成油

RF57減速機M2安裝加1.9升，RF57減速機M1安裝加0.8、1.7升，RF57減速機M3安裝加1.7升，RF57減速機M4安裝加2.1升，RF57減速機M5安裝加1.7升，RF57減速機M6安裝加1.7升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。齒輪減速機

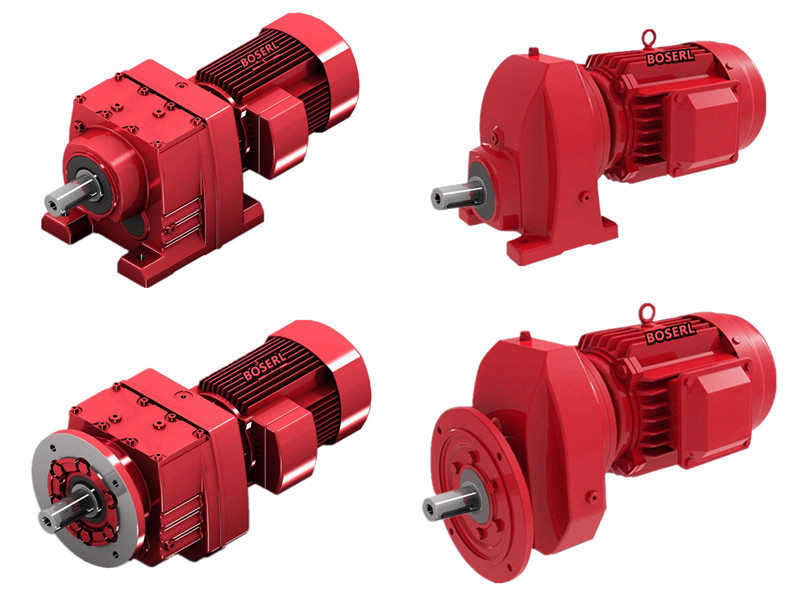

RF57減速機實物圖：圖一為RF57法蘭立式安裝斜齒輪減速機，圖二為R57底腳安裝斜齒輪減速機，圖三為RX57減速機不同心臥式底腳安裝，圖四為RXF57減速機不同心立式法蘭安裝。

RF57減速機型號表示方法：

RF57減速機型號結構RF57-B4KW-4P-減速比-安裝方式-接線盒位置。

RF57減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。

RF57減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RF57減速機參數：同軸減速機

RF57減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF57帶0.12KW,RF57帶0.25KW,RF57帶0.37KW,RF57帶0.55KW,RF57帶0.75KW,RF57帶1.1KW,RF57帶1.5KW,RF57帶2.2KW,RF57帶3KW,RF57帶4KW,RF57帶5.5KW,RF57帶7.5KW。

RF57減速機輸出轉速7.5轉,8.1轉,9.5轉,11轉,12轉,13轉,14轉,16轉,17轉,20轉,22轉,24轉,26轉,29轉,32轉,32轉,38轉,40轉,46轉,52轉,53轉,56轉,64轉,75轉,83轉,95轉,100轉,118轉,130轉,150轉,155轉,176轉,186轉,218轉,241轉,277轉,319轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF57減速機負載扭矩280N.m,305N.m,320N.m,335N.m,350N.m,355N.m,370N.m,375N.m,390N.m,405N.m,430N.m,435N.m,450N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF57減速機減速比4.39比,5.05比,5.82.比,6.41比,7.53比,7.97比,9.06比,9.35比,10.79比,11.18比,13.95比,14.77比,16.79比,18.60比,21.93比,24.99比,26.31比,26.97比,30.18比,35.07比,37.3比,43.3比,48.32比,53.22比,57.29比,64.85比,69.23比,80.55比,89.71比,98.99比,106.58比,120.63比,128.77比,147.92比,172.17比,186.89比。

RF57減速機外形尺寸：輸出軸Φ35+鍵3（可定做），高187*寬202*長257（帶輸出軸）

RF57減速機型號：RF57AQA80,RF57AQA100,RF57AQA115,RF57AQA140,RF57AQA160,RF57AQA190,RF57AQH80,RF57AQH100,RF57AQH115,RF57AQH140,RF57AQH160,RF57AQH190,JRTRF57-Y0.12KW,JRTRF57-Y0.18KW,JRTRF57-Y0.25KW,JRTRF57-Y0.37KW,JRTRF57-Y0.55KW,JRTRF57-Y0.75KW,JRTRF57-Y1.1KW,JRTRF57-Y1.5KW,JRTRF57-Y100M4,JRTRF57-Y112M4,JRTRF57-Y132M4,JRTRF57-Y2.2KW,JRTRF57-Y3KW,JRTRF57-Y4KW,JRTRF57-Y5.5KW,JRTRF57-Y63M4,JRTRF57-Y7.5KW,JRTRF57-Y71M4,JRTRF57-Y80M4,JRTRF57-Y90M4,JRTRF57-YEJ100M4,JRTRF57-YEJ112M4,JRTRF57-YEJ132M4,JRTRF57-YEJ63M4,JRTRF57-YEJ71M4,JRTRF57-YEJ80M4,JRTRF57-YEJ90M4,JRTRF57-YS100M4,JRTRF57-YS112M4,JRTRF57-YS132M4,JRTRF57-YS63M4,JRTRF57-YS71M4,JRTRF57-YS80M4,JRTRF57-YS90M4,JRTRF57-YVP100M4,JRTRF57-YVP112M4,JRTRF57-YVP132M4,JRTRF57-YVP63M4,JRTRF57-YVP71M4,JRTRF57-YVP80M4,JRTRF57-YVP90M4,JRTRF57-YVPEJ100M4,JRTRF57-YVPEJ112M4,JRTRF57-YVPEJ132M4,JRTRF57-YVPEJ63M4,JRTRF57-YVPEJ71M4,JRTRF57-YVPEJ80M4,JRTRF57-YVPEJ90M4,EWRF57-Y0.12KW,EWRF57-Y0.18KW,EWRF57-Y0.25KW,EWRF57-Y0.37KW,EWRF57-Y0.55KW,EWRF57-Y0.75KW,EWRF57-Y1.1KW,EWRF57-Y1.5KW,EWRF57-Y100M4,EWRF57-Y112M4,EWRF57-Y132M4,EWRF57-Y2.2KW,EWRF57-Y3KW,EWRF57-Y4KW,EWRF57-Y5.5KW,EWRF57-Y63M4,EWRF57-Y7.5KW,EWRF57-Y71M4,EWRF57-Y80M4,EWRF57-Y90M4,EWRF57-YEJ100M4,EWRF57-YEJ112M4,EWRF57-YEJ132M4,EWRF57-YEJ63M4,EWRF57-YEJ71M4,EWRF57-YEJ80M4,EWRF57-YEJ90M4,EWRF57-YS100M4,EWRF57-YS112M4,EWRF57-YS132M4,EWRF57-YS63M4,EWRF57-YS71M4,EWRF57-YS80M4,EWRF57-YS90M4,EWRF57-YVP100M4,EWRF57-YVP112M4,EWRF57-YVP132M4,EWRF57-YVP63M4,EWRF57-YVP71M4,EWRF57-YVP80M4,EWRF57-YVP90M4,EWRF57-YVPEJ100M4,EWRF57-YVPEJ112M4,EWRF57-YVPEJ132M4,EWRF57-YVPEJ63M4,EWRF57-YVPEJ71M4,EWRF57-YVPEJ80M4,EWRF57-YVPEJ90M4,SLRF57-Y0.12KW,SLRF57-Y0.18KW,SLRF57-Y0.25KW,SLRF57-Y0.37KW,SLRF57-Y0.55KW,SLRF57-Y0.75KW,SLRF57-Y1.1KW,SLRF57-Y1.5KW,SLRF57-Y100M4,SLRF57-Y112M4,SLRF57-Y132M4,SLRF57-Y2.2KW,SLRF57-Y3KW,SLRF57-Y4KW,SLRF57-Y5.5KW,SLRF57-Y63M4,SLRF57-Y7.5KW,SLRF57-Y71M4,SLRF57-Y80M4,SLRF57-Y90M4,SLRF57-YEJ100M4,SLRF57-YEJ112M4,SLRF57-YEJ132M4,SLRF57-YEJ63M4,SLRF57-YEJ71M4,SLRF57-YEJ80M4,SLRF57-YEJ90M4,SLRF57-YS100M4,SLRF57-YS112M4,SLRF57-YS132M4,SLRF57-YS63M4,SLRF57-YS71M4,SLRF57-YS80M4,SLRF57-YS90M4,SLRF57-YVP100M4,SLRF57-YVP112M4,SLRF57-YVP132M4,SLRF57-YVP63M4,SLRF57-YVP71M4,SLRF57-YVP80M4,SLRF57-YVP90M4,SLRF57-YVPEJ100M4,SLRF57-YVPEJ112M4,SLRF57-YVPEJ132M4,SLRF57-YVPEJ63M4,SLRF57-YVPEJ71M4,SLRF57-YVPEJ80M4,SLRF57-YVPEJ90M4,DSZRF57-Y0.12KW,DSZRF57-Y0.18KW,DSZRF57-Y0.25KW,DSZRF57-Y0.37KW,DSZRF57-Y0.55KW,DSZRF57-Y0.75KW,DSZRF57-Y1.1KW,DSZRF57-Y1.5KW,DSZRF57-Y100M4,DSZRF57-Y112M4,DSZRF57-Y132M4,DSZRF57-Y2.2KW,DSZRF57-Y3KW,DSZRF57-Y4KW,DSZRF57-Y5.5KW,DSZRF57-Y63M4,DSZRF57-Y7.5KW,DSZRF57-Y71M4,DSZRF57-Y80M4,DSZRF57-Y90M4,DSZRF57-YEJ100M4,DSZRF57-YEJ112M4,DSZRF57-YEJ132M4,DSZRF57-YEJ63M4,DSZRF57-YEJ71M4,DSZRF57-YEJ80M4,DSZRF57-YEJ90M4,DSZRF57-YS100M4,DSZRF57-YS112M4,DSZRF57-YS132M4,DSZRF57-YS63M4,DSZRF57-YS71M4,DSZRF57-YS80M4,DSZRF57-YS90M4,DSZRF57-YVP100M4,DSZRF57-YVP112M4,DSZRF57-YVP132M4,DSZRF57-YVP63M4,DSZRF57-YVP71M4,DSZRF57-YVP80M4,DSZRF57-YVP90M4,DSZRF57-YVPEJ100M4,DSZRF57-YVPEJ112M4,DSZRF57-YVPEJ132M4,DSZRF57-YVPEJ63M4,DSZRF57-YVPEJ71M4,DSZRF57-YVPEJ80M4,DSZRF57-YVPEJ90M4,BRF57-Y0.12KW,BRF57-Y0.18KW,BRF57-Y0.25KW,BRF57-Y0.37KW,BRF57-Y0.55KW,BRF57-Y0.75KW,BRF57-Y1.1KW,BRF57-Y1.5KW,BRF57-Y100M4,BRF57-Y112M4,BRF57-Y132M4,BRF57-Y2.2KW,BRF57-Y3KW,BRF57-Y4KW,BRF57-Y5.5KW,BRF57-Y63M4,BRF57-Y7.5KW,BRF57-Y71M4,BRF57-Y80M4,BRF57-Y90M4,BRF57-YEJ100M4,BRF57-YEJ112M4,BRF57-YEJ132M4,BRF57-YEJ63M4,BRF57-YEJ71M4,BRF57-YEJ80M4,BRF57-YEJ90M4,BRF57-YS100M4,BRF57-YS112M4,BRF57-YS132M4,BRF57-YS63M4,BRF57-YS71M4,BRF57-YS80M4,BRF57-YS90M4,BRF57-YVP100M4,BRF57-YVP112M4,BRF57-YVP132M4,BRF57-YVP63M4,BRF57-YVP71M4,BRF57-YVP80M4,BRF57-YVP90M4,BRF57-YVPEJ100M4,BRF57-YVPEJ112M4,BRF57-YVPEJ132M4,BRF57-YVPEJ63M4,BRF57-YVPEJ71M4,BRF57-YVPEJ80M4,BRF57-YVPEJ90M4,GRF57-Y0.12KW,GRF57-Y0.18KW,GRF57-Y0.25KW,GRF57-Y0.37KW,GRF57-Y0.55KW,GRF57-Y0.75KW,GRF57-Y1.1KW,GRF57-Y1.5KW,GRF57-Y100M4,GRF57-Y112M4,GRF57-Y132M4,GRF57-Y2.2KW,GRF57-Y3KW,GRF57-Y4KW,GRF57-Y5.5KW,GRF57-Y63M4,GRF57-Y7.5KW,GRF57-Y71M4,GRF57-Y80M4,GRF57-Y90M4,GRF57-YEJ100M4,GRF57-YEJ112M4,GRF57-YEJ132M4,GRF57-YEJ63M4,GRF57-YEJ71M4,GRF57-YEJ80M4,GRF57-YEJ90M4,GRF57-YS100M4,GRF57-YS112M4,GRF57-YS132M4,GRF57-YS63M4,GRF57-YS71M4,GRF57-YS80M4,GRF57-YS90M4,GRF57-YVP100M4,GRF57-YVP112M4,GRF57-YVP132M4,GRF57-YVP63M4,GRF57-YVP71M4,GRF57-YVP80M4,GRF57-YVP90M4,GRF57-YVPEJ100M4,GRF57-YVPEJ112M4,GRF57-YVPEJ132M4,GRF57-YVPEJ63M4,GRF57-YVPEJ71M4,GRF57-YVPEJ80M4,GRF57-YVPEJ90M4,RCF57-Y0.12KW,RCF57-Y0.18KW,RCF57-Y0.25KW,RCF57-Y0.37KW,RCF57-Y0.55KW,RCF57-Y0.75KW,RCF57-Y1.1KW,RCF57-Y1.5KW,RCF57-Y100M4,RCF57-Y112M4,RCF57-Y132M4,RCF57-Y2.2KW,RCF57-Y3KW,RCF57-Y4KW,RCF57-Y5.5KW,RCF57-Y63M4,RCF57-Y7.5KW,RCF57-Y71M4,RCF57-Y80M4,RCF57-Y90M4,RCF57-YEJ100M4,RCF57-YEJ112M4,RCF57-YEJ132M4,RCF57-YEJ63M4,RCF57-YEJ71M4,RCF57-YEJ80M4,RCF57-YEJ90M4,RCF57-YS100M4,RCF57-YS112M4,RCF57-YS132M4,RCF57-YS63M4,RCF57-YS71M4,RCF57-YS80M4,RCF57-YS90M4,RCF57-YVP100M4,RCF57-YVP112M4,RCF57-YVP132M4,RCF57-YVP63M4,RCF57-YVP71M4,RCF57-YVP80M4,RCF57-YVP90M4,RCF57-YVPEJ100M4,RCF57-YVPEJ112M4,RCF57-YVPEJ132M4,RCF57-YVPEJ63M4,RCF57-YVPEJ71M4,RCF57-YVPEJ80M4,RCF57-YVPEJ90M4,MTDF57-Y0.12KW,MTDF57-Y0.18KW,MTDF57-Y0.25KW,MTDF57-Y0.37KW,MTDF57-Y0.55KW,MTDF57-Y0.75KW,MTDF57-Y1.1KW,MTDF57-Y1.5KW,MTDF57-Y100M4,MTDF57-Y112M4,MTDF57-Y132M4,MTDF57-Y2.2KW,MTDF57-Y3KW,MTDF57-Y4KW,MTDF57-Y5.5KW,MTDF57-Y63M4,MTDF57-Y7.5KW,MTDF57-Y71M4,MTDF57-Y80M4,MTDF57-Y90M4,MTDF57-YEJ100M4,MTDF57-YEJ112M4,MTDF57-YEJ132M4,MTDF57-YEJ63M4,MTDF57-YEJ71M4,MTDF57-YEJ80M4,MTDF57-YEJ90M4,MTDF57-YS100M4,MTDF57-YS112M4,MTDF57-YS132M4,MTDF57-YS63M4,MTDF57-YS71M4,MTDF57-YS80M4,MTDF57-YS90M4,MTDF57-YVP100M4,MTDF57-YVP112M4,MTDF57-YVP132M4,MTDF57-YVP63M4,MTDF57-YVP71M4,MTDF57-YVP80M4,MTDF57-YVP90M4,MTDF57-YVPEJ100M4,MTDF57-YVPEJ112M4,MTDF57-YVPEJ132M4,MTDF57-YVPEJ63M4,MTDF57-YVPEJ71M4,MTDF57-YVPEJ80M4,MTDF57-YVPEJ90M4,WXRF57-WSS0.12KW,WXRF57-WSS0.18KW,WXRF57-WSS0.25KW,WXRF57-WSS0.37KW,WXRF57-WSS0.55KW,WXRF57-WSS0.75KW,WXRF57-WSS1.1KW,WXRF57-WSS1.5KW,WXRF57-WSS100M4,WXRF57-WSS112M4,WXRF57-WSS132M4,WXRF57-WSS2.2KW,WXRF57-WSS3KW,WXRF57-WSS4KW,WXRF57-WSS5.5KW,WXRF57-WSS63M4,WXRF57-WSS7.5KW,WXRF57-WSS71M4,WXRF57-WSS80M4,WXRF57-WSS90M4,WXRF57-WSSB100M4,WXRF57-WSSB112M4,WXRF57-WSSB132M4,WXRF57-WSSB63M4,WXRF57-WSSB71M4,WXRF57-WSSB80M4,WXRF57-WSSB90M4,WXRF57-WSSVP100M4,WXRF57-WSSVP112M4,WXRF57-WSSVP132M4,WXRF57-WSSVP63M4,WXRF57-WSSVP71M4,WXRF57-WSSVP80M4,WXRF57-WSSVP90M4,WXRF57-WSSVPB100M4,WXRF57-WSSVPB112M4,WXRF57-WSSVPB132M4,WXRF57-WSSVPB63M4,WXRF57-WSSVPB71M4,WXRF57-WSSVPB80M4,WXRF57-WSSVPB90M4。RF系列減速機

RF57減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://0571bufa.com/product/list-rfxiliejiansuji-cn.html
